25RE



Extras ▼



The 25RE is a pair of HT rectifiers with a 300 mA heater for series connection. The rectifier sections can be used in parallel for increased current, used as a full wave rectifier (unlikely in a set with no mains transformer, or as a voltage doubler to give 250 Volts from USA mains.

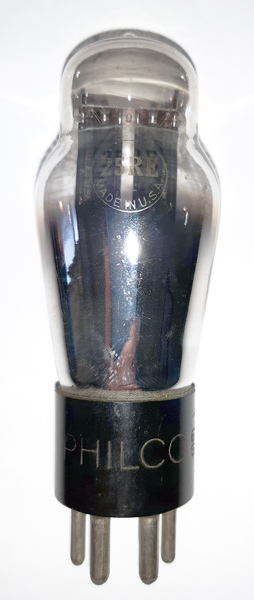

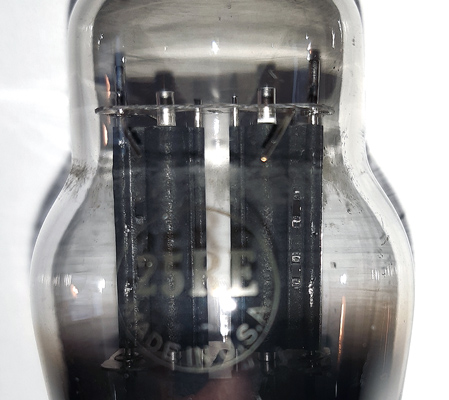

The identification contained within a circle on the envelope.

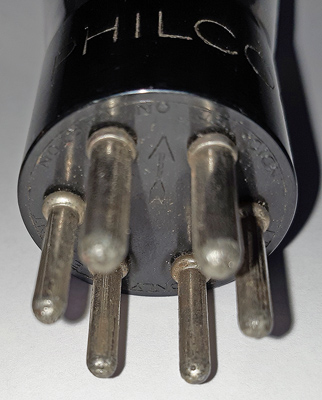

The UX6 base pins.
Thanks to Mark Mallison for sending the images.
The classic envelope is  mm in diameter and, excluding the UX6 base pins, is  mm tall.
References: Data & Data. Type 25RE was first introduced in 1940. See also 1940 adverts.



Pin Connections
IO
1
2
3
4
5
6
h
a(2)
k(2)
k(1)
a(1)
h



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
25.0
0.3
250
80
