CV189

Sensibly equivalent to:
BS4

Extras ▼

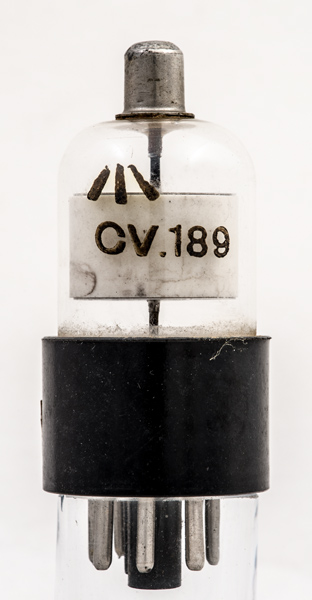

The CV189 is a gas filled protective spark gap. There are two electrodes with the lower electrode connected to the base pins and the upper electrode connected to the anode.
The electrodes sit either end of the ceramic cylinder.

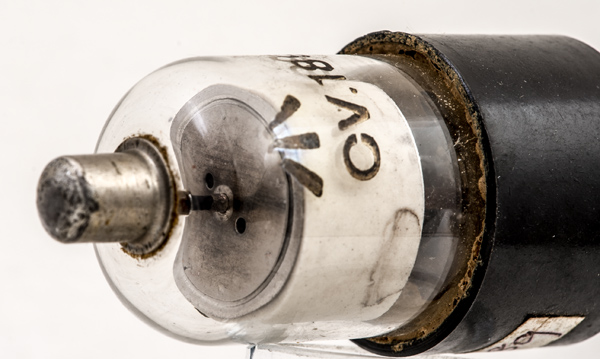

The top electrode with distortion due to the glass.

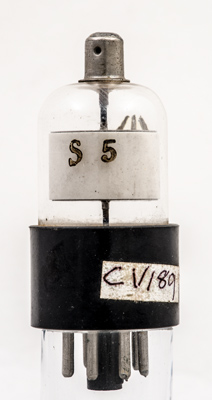

The wide glass tube envelope is 30 mm in diameter and, excluding the IO base pins, is 69 mm tall.
Reference: Data-sheet.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
l
nc
nc
nc
nc
nc
nc
l
u



Absolute Maximum Operating Conditions
General Notes
Vh
Ah
Va
mAa
-
-
17
100A
Thanks to Frank Philipse for supplying the above PDF datasheet.
