CV2524

Sensibly equivalent^¶ to:

6AU6 CV4023 EF94

Extras ▼

Unknown Donation from Jeremy Harmer

The 6AU6 was the prototype for the CV2524. The valve is a sharp cut-off pentode. Usage is RF or AF amplification.

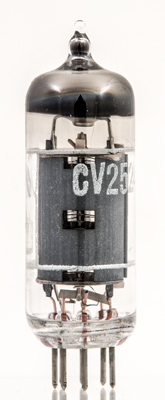

The hole in the anode allows a glimpse of the three wire grids within.

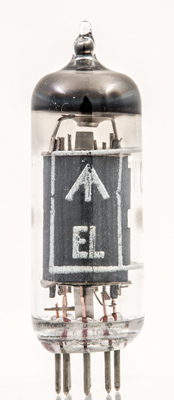

Face view with screening for the anode lead to the base pin.

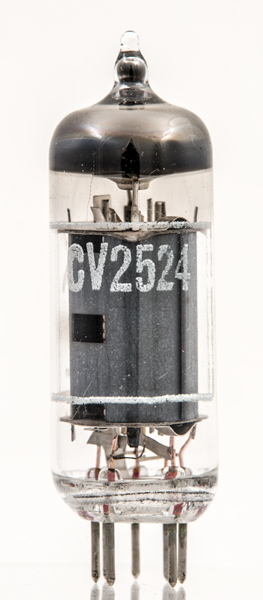

The thin glass tube envelope is 18 mm in diameter and excluding the B7G base pins, is 53 mm tall.

References: Data-sheet & ¹⁰⁴⁰. Type CV2524 was first introduced in 1957. See also 1957 adverts.

Pin Connections

B7G	1	2	3	4	5	6	7
	g1	g3,s	h	h	a	g2	k

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm
	6.3	0.3	330	165	-6.5	10.6	4.3	1.0M	5.2

PDF scanned from an original document held by the museum
