5J32

Sensibly equivalent to:
CV1538 ZP646

Extras ▼



The 5J32 two anode magnetron was produced for the USA Navy. It was designed to operate at between 90 and 450 MHz and could generate 125 Watts of CW output at 450 MHz, but with a DC input of 500 Watts.

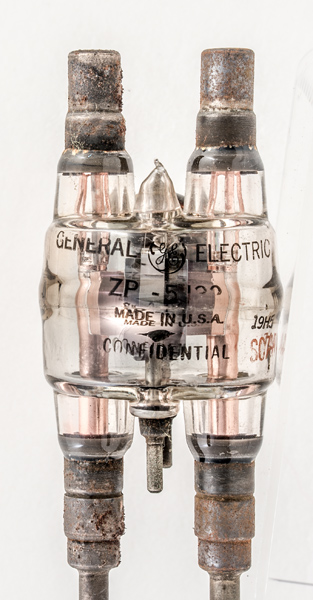

The large tubes connect to the anode and the smaller pins are the filament. The anode tubes do not pass through the valve for water cooling.

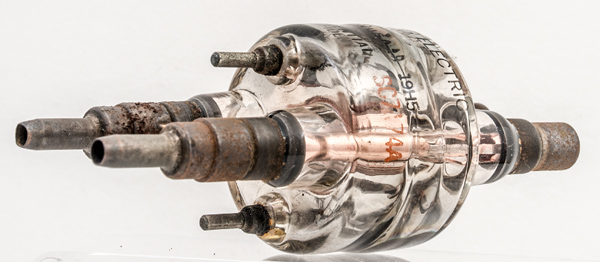

The filament can be seen as a thick wire running across the valve. The hole in the anodes is circular but here distorted by the shaped glass.

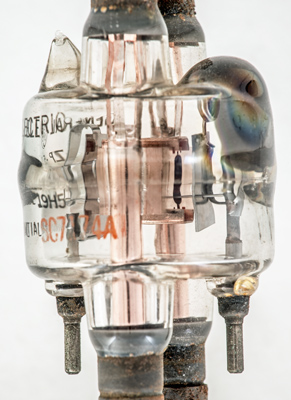

The anodes seen side on.
The wide glass tube envelope is 50 mm in diameter and, tip to tip measures 125 mm.
References: Data-sheet, Private communication & 3002. Type 5J32 was first introduced in 1946. See also 1946 adverts.



Absolute Maximum Operating Conditions
General Notes
Vh
Ah
Va
2.1
40
2,500
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 16, 2021.
