Z62

Sensibly equivalent to:
ARP21 CV1192 CV3838 NR79

Extras ▼

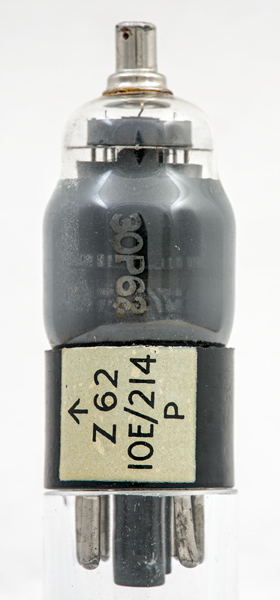

The Z62 is an indirectly heated HF pentode. The CV1192 was based on the Z62 as were the earlier names of Navy NR79 and Army ARP21. This exhibit carries the old stores code of 10E/214.

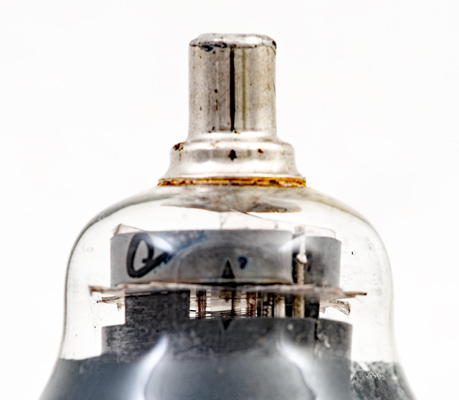

There is a screen above the top mica. The control grid supports are copper.

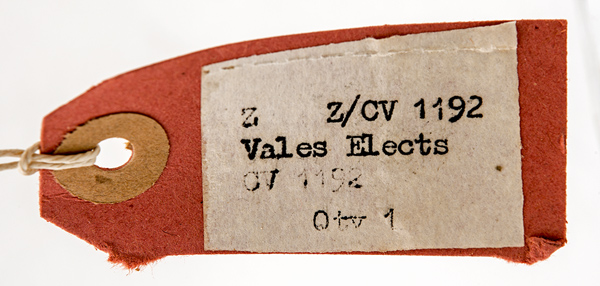

The carton containing this exhibit contained this tag. The CV1192 is the same valve as the Z62
The classic envelope is 30 mm in diameter, and excluding the IO base pins is 72 mm tall.
Reference: Data-sheet. Type Z62 was first introduced in 1939. See also 1939 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
nc
h
a
g2
g3
nc
h
k
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
6.3
0.45
300
150
-2.3
10.0
3.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 04, 2022.
