AR17

Sensibly equivalent to:
CV1037 MH4 NR31 VR37

Extras ▼



The AR17 Army Receiving valve is an indirectly heated amplifier triode. This exhibit was made by M-OV under the GEC brand.
The commercial equivalent was the AC/HL.

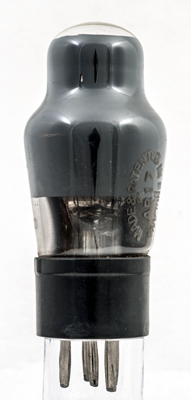

The reverse carries the identification but the lozenge on the front is clearly indicating an M-OV valve.

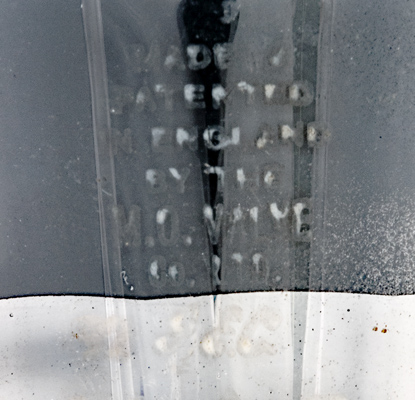

The lettering found on the reverse.

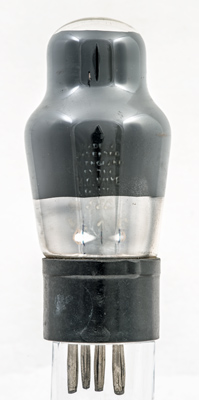

The coating hides all but the pinch and stem.

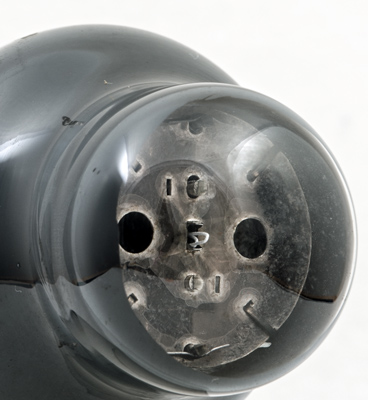

The top mica: a rectangular cathode tube with two insulated heater loops.

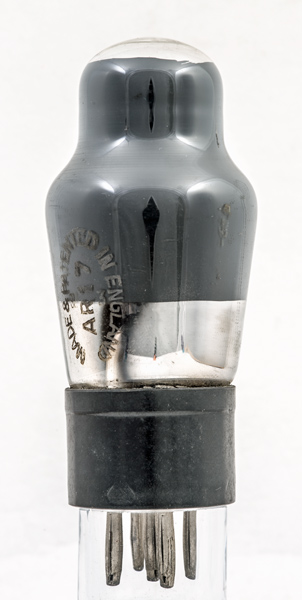

The classic envelope is 44 mm in diameter and, excluding the B5 base pins, is 96 mm tall.
References: Private communication, data-sheet & 1043.



Pin Connections
B5
1
2
3
4
5
a
g1
h
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
4.0
1.0
200
-2.75
6
10,000
3.5
PDF scanned from an original document held by the museum
