24B9

Sensibly equivalent to:
CV6008 CV6173
See also:
Britain's Atomic Bomb

Extras ▼

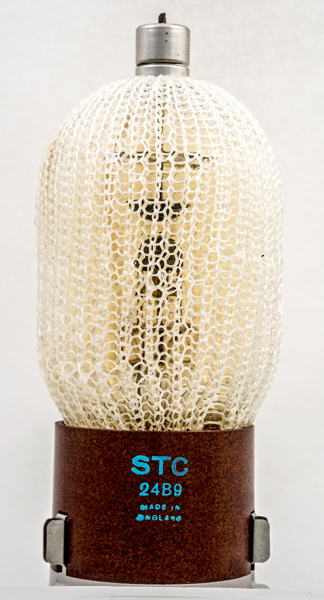

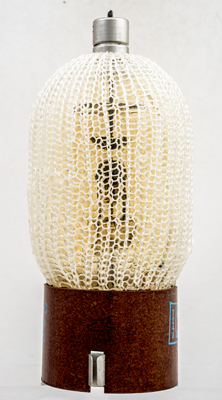

The 24B9 is a gas filled triggered spark gap modulator known as a trigatron. The fabric basket sealed in resin was required as these devices had a habit of shattering explosively during use. The pulse power switched into a magnetron by the 24B9 was of the order of 160 kW.
The UK's first atomic bomb was an implosion device and the 32 explosive segments had to be triggered simultaneously. Bridge wire detonators were used fired by a high voltage high current pulse. A trigatron was used to discharge the capacitors into the detonators. See the attached pdf pages 44 and 45.
A pinch construction at the base with the anode supported from the top cap.
The wide glass tube envelope is 68 mm in diameter and, including the base pins, is 150 mm tall.
Reference: Data-sheet. Type 24B9 was first introduced in 1971. See also 1971 adverts.



Absolute Maximum Operating Conditions
Trigatron
Va
10,000
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 16, 2021.
