VR57

Sensibly equivalent to:
CV1057 EK32

Extras ▼

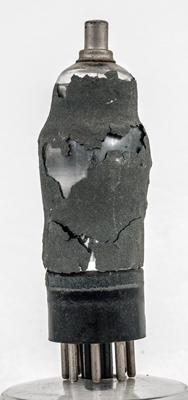

The VR57 is an octode frequency changer or mixer that dates to 1940. The VR designation indicates a pre WWII RAF use. The manufacturer is not marked and the zinc paint is breaking away from the glass.
The reverse has no additional information but shows even more damage to the zinc paint.
The classic envelope is 30 mm in diameter and, excluding the IO base pins, is 86 mm tall.
References: Datasheet & 1043. Type VR57 was first introduced in 1940.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
h
a
g3,g5
g1
g2
h
k
g4



Absolute Maximum Operating Conditions
Octode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.2
250
50
-2
1.0
0.8
2.0M
0.55
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December20, 2017.
shape:classic construction:pinch type:octode age:1930.1940 base:io heater:6.3v pins:8 pin:1.m pin:2.h pin:3.a pin:4.g3.g5 pin:5.g1 pin:6.g2 pin:7.h pin:8.k pin:tc.g4
