GD86W/SSensibly equivalent¶ to:CV2321
|
|
|

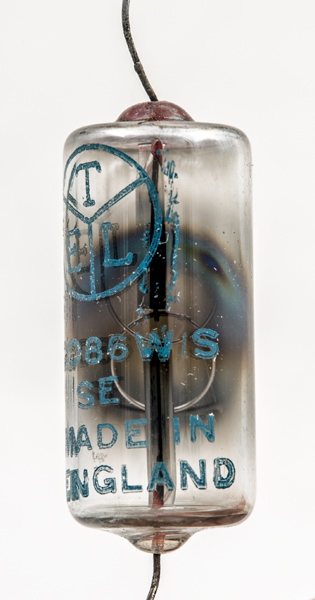

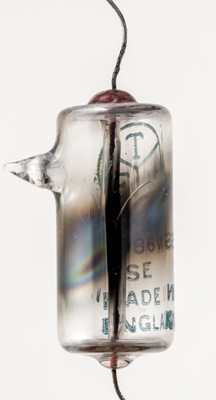

The GD86W/S is a voltage reference tube designed to operate at a fixed current of 0.5 mA where it has a voltage stability of 86 ± 1.5 Volts. The minimum striking voltage is 125 Volts.The use would be in a stabilised power supply, probably with a difference amplifier and series pass valve supplying current to the controlled circuit.The evacuation pip on the side. The electrodes are obscured but there is a diagram of the structure in the data-sheet.The thin glass tube envelope is 16 mm in diameter and, excluding the wires, is 37 mm tall.Reference: Data-sheet. Type GD86W/S was first introduced in 1954. See also 1954 adverts. |
Absolute Maximum Operating Conditions¶
Stabiliser | Vh | Ah | Va | mAa |
| - | - | 86 | 1.0 |
|
