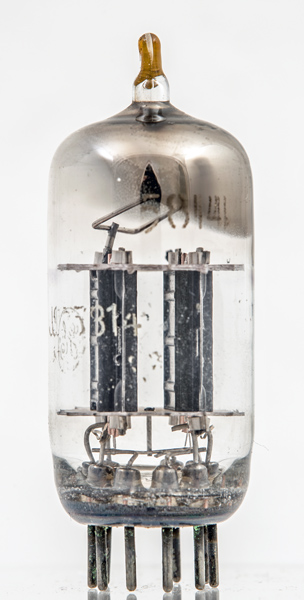

The 5814 is a special quality double triode with characteristics similar to the 12AU7 and is pin compatible. It is of rugged construction to be able to operate in areas of shock and vibration - i.e. aircraft etc.
The heater is centre tapped and with the two sections in series it will operate from a 12.6 Volt supply as found in vehicles.

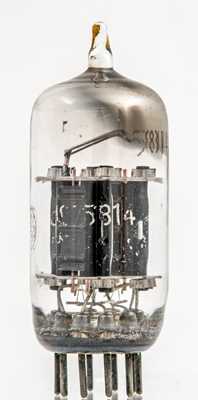

The top mica is double layer and the control grid is wound on copper rods.

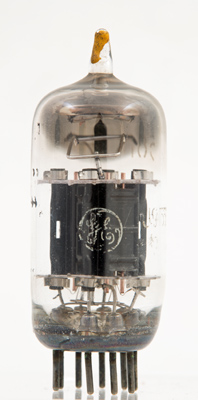

The GE logo.
The thin glass tube envelope is 21 mm in diameter and, excluding the B9A base pins, is 48 mm tall.
