2A5

Sensibly equivalent^¶ to:

CV1834

Extras ▼

National Union TNMoC The National Museum of Computing - Valves Other 2A5 exhibits

The 2A5 is an audio output valve. With different heater ratings and bases the 6F6 and 42 are electrically equivalent to this 2.5 Volt pentode.

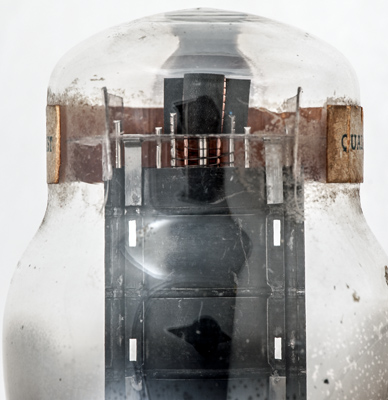

The paper band around the top of the glass reads Quality Approved - Special Export Test.

The inner grids: copper supports with heat radiating fins for the control grid.

The classic envelope is 44 mm in diameter, and excluding the UX6 base pins is 101 mm tall.

References: Data-sheet & ¹⁰⁴³. Type 2A5 was first introduced in 1932. See also 1932 adverts.

Pin Connections

UX6	1	2	3	4	5	6
	h	a	g2	g1	k	h

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm	rk	rl	Pout
	2.5	1.75	250	250	-16.5	34.0	6.5	0.1M	2.2	-	7,000	3W

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated July 15, 2019.
