E4103/E/4

Sensibly equivalent to:
408A
See also:
GEC screen phosphors - GEC CRTs - 1956

Extras ▼

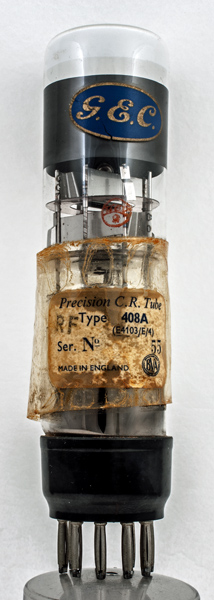

The experimental E4103/E/4 small CRT from GEC was later renamed the 408A and this example carries both designations on the paper label. We also have the E4103/B/4 that has the standard green trace.
Both anodes are connected together and need 1,000 Volts on them. With 1,000 Volts on the anodes the Y sensitivity is 0.09 mm/V and the X sensitivity is 0.1 mm/V. The grid voltage of -25 Volts is to achieve cut-off. The screen has a short persistence blue trace, aimed at the photographic recording of the trace.

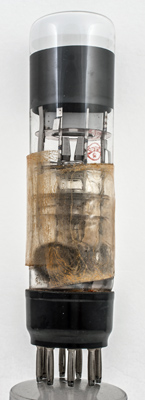

The old discoloured adhesive of the label has obscured the electron gun. The Y deflection plates can be seen end on with the width of the X plates seen above.

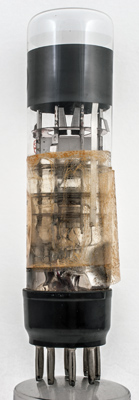

The X plates seen end on with the Y plates below.

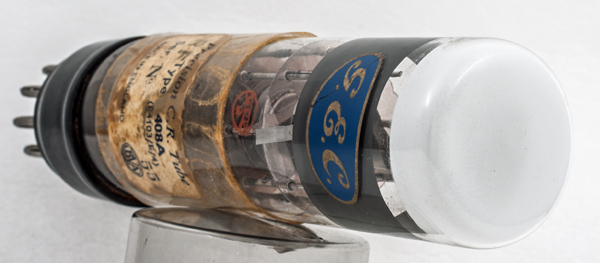

The screen end.
The end window envelope is 38 mm in diameter, and excluding the B9 base pins, is 144 mm tall.
References: Data-sheet & 4018. Type E4103/E/4 was first introduced in 1936. See also 1936 adverts.



Pin Connections
B9
1
2
3
4
5
6
7
8
9
x1
y1
a2
h,k
h
g1
a1,a3
y2
x2



Absolute Maximum Operating Conditions
CRT
Vh
Ah
Va
Vg
4.0
1.1
1,000
-25
PDF scanned from an original document held by the museum
