XSG

Sensibly equivalent^¶ to:

XSGSW

See also:

XSG Box

Extras ▼

Hivac The Two Margarets

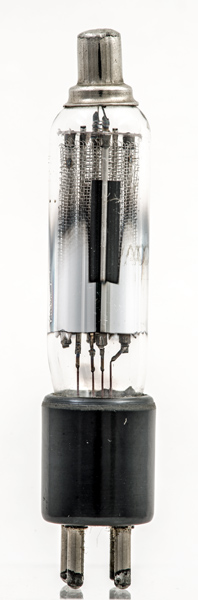

The XSG from Hivac is a miniature two Volt tetrode and the design dates to 1935. Construction is all glass with a mesh screen grid.

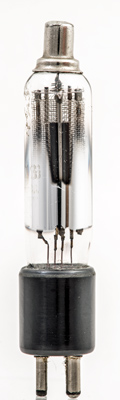

The woven wire mesh screen grid..

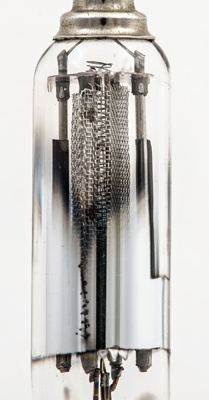

A closer view. The filament tension spring is helical and mounted at the top of the electrode assembly.

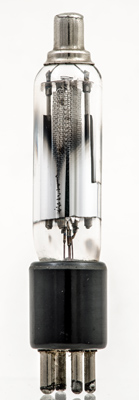

Here the small anode plate can be seen and within the screen mesh can be glimpsed the control grid winding.

The thin Glass Tube envelope is 15 mm in diameter and, excluding the SM4 base pins, is 70 mm tall.

Reference: Data & ¹⁰⁴³. Type XSG was first introduced in 1935. See also 1935 adverts.

Pin Connections

	1	2	3	4	tc
	g2	g1	f	f	a

Absolute Maximum Operating Conditions^¶

Tetrode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm	μ
	2.0	0.066	120	60	-	1.75	0.2

Updated December18, 2022.
