6Zh4

Sensibly equivalent to:
6ж4

Extras ▼



The 6Zh4 is the English designation for this Soviet special quality HF pentode. In Cyrillic the Type is 6ж4.

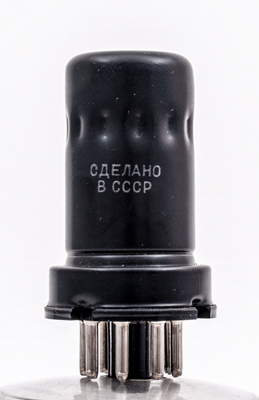

The reverse side lettering identifies this as a Soviet era valve with the letters CCCP.
The thin metal tube envelope is 25 mm in diameter, and excluding the IO base pins is 51 mm tall.
References: Russiantubes.com.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
g3
g1
k
g2
h
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
6.3
0.475
300
150
0
12.0
-
11.0
Updated January 13, 2017.
