6Zh8

Sensibly equivalent to:
6ж8

Extras ▼

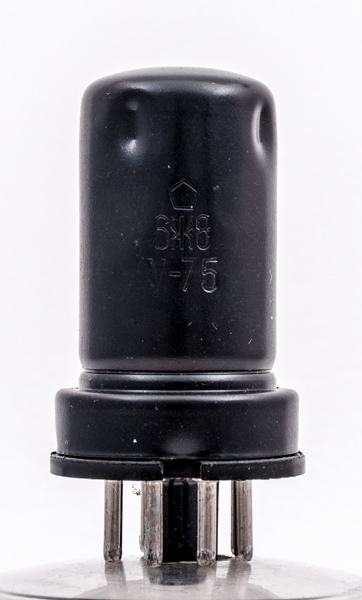

The 6Zh8 is the english designation for this Soviet valve. In Cyrillic the Type is 6ж8.
It is a voltage amplifier HF pentode.

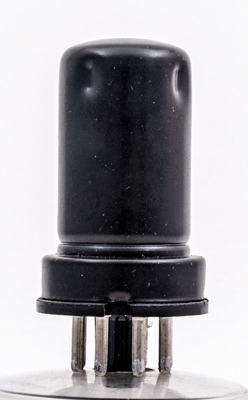

The reverse is plain paint. The top of the envelope is pinched-in, probably to hold the internal structure rigid.
The thin metal tube envelope is 25 mm in diameter, and excluding the IO base pins is 53 mm tall.
References: Russiantubes.com.



Pin Connections
IO
1
2
3
4
5
6
7
8
-
h
g3
g1
k
g2
h
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
6.3
0.3
250
100
-3.0
4.0
2.0
