AS4125

Sensibly equivalent to:
AC/SGVM CV1165 MVS-Pen VMS4B VP4
See also:
Tungsram Symphonic Range Advert

Extras ▼



The AS4125 is an indirectly heated variable-μ RF tetrode for superhet receiver applications.

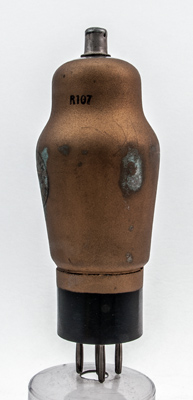

The reverse is plain gold paint.
The classic envelope is 49 mm in diameter, and excluding the B5 base pins is 121 mm tall.
Reference: 1043. Type AS4125 was first introduced in 1933. See also 1933 adverts.



Pin Connections
B5
1
2
3
4
5
tc
a
g1
h
h
k
g2



Absolute Maximum Operating Conditions
Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
4.0
1.2
200
100
-1.5-40
3.0
0.8
0.25M
3.0
