311SU

Sensibly equivalent^¶ to:

31A3 U142 UY41

Extras ▼

Cossor G8BLW's Valves Other 311SU exhibits

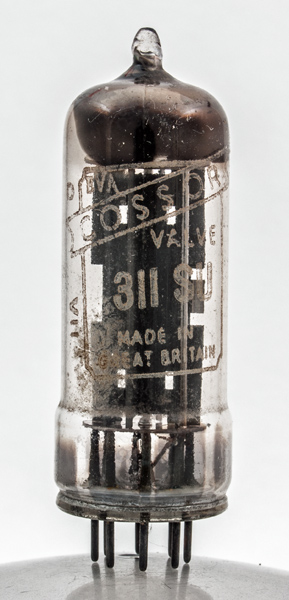

The 311SU is a half wave rectifier designed for universal domestic equipment.

See U142 for more details.

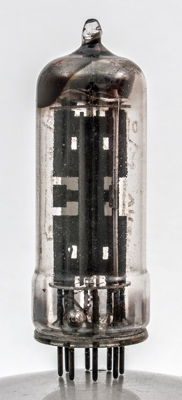

The anode connects to the vertical rod seen on the right.

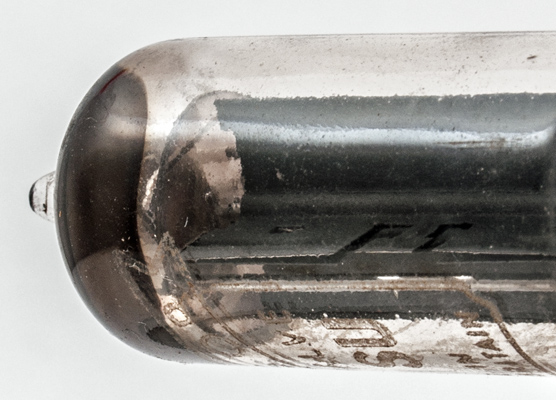

The anode is formed in an X shape to offer the maximum surface area for cooling.

The thin glass tube envelope is 20 mm in diameter, and excluding the B8A base pins is 59 mm tall.

References: Data-sheet & ¹⁰⁴⁰. Type 311SU was first introduced in 1947. See also 1947 adverts.

Pin Connections

B8A	1	2	3	4	5	6	7	8
	h	a	nc	ic	ic	ic	k	h

Absolute Maximum Operating Conditions^¶

Rectifier	Vh	Ah	Va	mAa
	31.0	0.1	250	100

Thanks to Frank Philipse for supplying the above PDF datasheet.
