12AH7GT

Sensibly equivalent to:
CV529 VT-207

Extras ▼

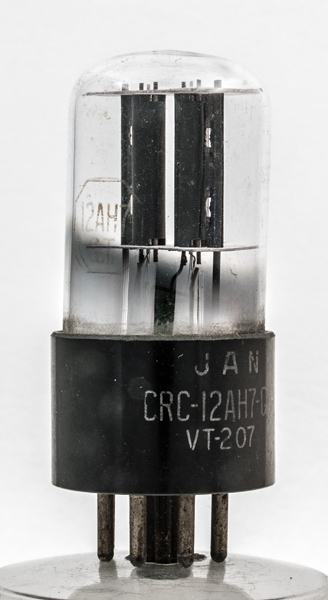

The 12AH7GT has two independent audio triodes within the envelope. The triodes are low impedance, low gain types similar to the ECC82 in ratings.

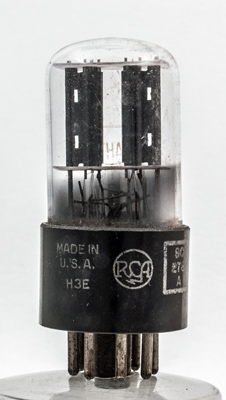

A view of the triodes seen end on. The 12AH7GT is equivalent to the VT-207 American government specification.

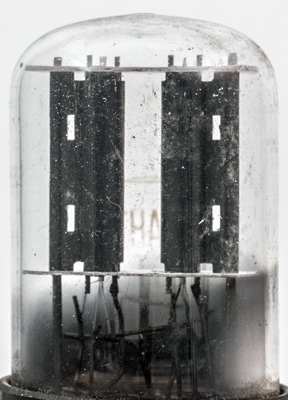

The two triodes are identical and the stitched anodes clamp to the support rods.
The glass looks perfectly clear but close-up there are many imperfections.

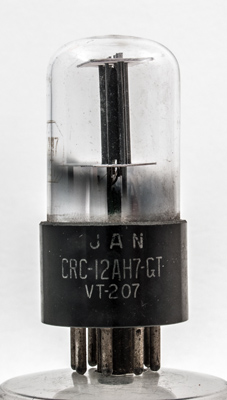

The wide glass tube envelope is 29 mm in diameter, and excluding the IO base pins is 62 mm tall.
References: Data-sheet, 1040 & 1043. Type 12AH7GT was first introduced in 1941. See also 1941 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
g1(1)
k(1)
a(1)
k(2)
g1(2)
a(2)
h
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
12.6
0.15
250
-9.0
12.0
6,600
2.4
16
Thanks to Frank Philipse for supplying the above PDF datasheet.
