The 5949 is a hydrogen thyratron designed to produce pulses of up to 6 MW with an average power in the pulse train of about 6 kW.
The unusual feature of this thyratron is the hydrogen reservoir capsule. The voltage on this capsule adjusts and maintains the hydrogen pressure within the envelope.

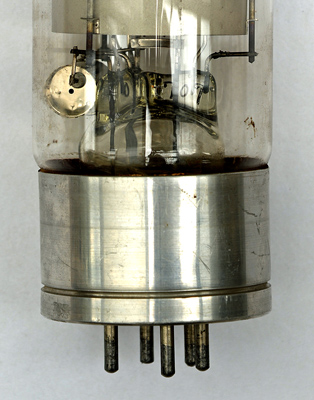

The base and pinch components. The hydrogen capsule is on the left and one end of the capsule heater can be seen.

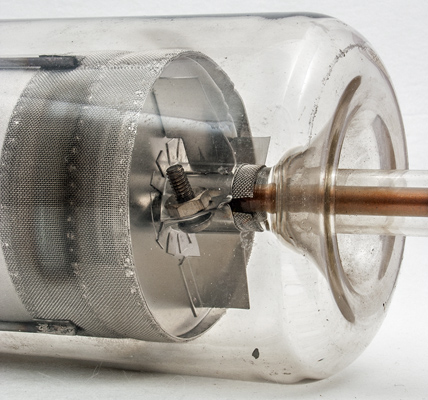

The top of the shield with the copper anode connection running through a glass sheath into the screen.

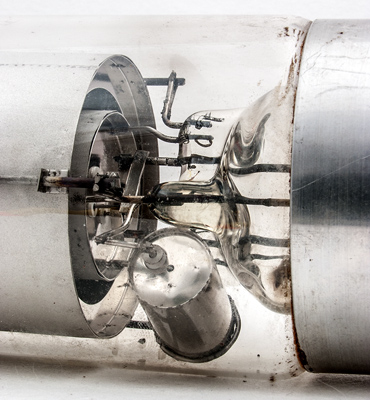

Another view of the triangular pinch with hydrogen reservoir at the bottom of the image.
The wide glass tube envelope is 82 mm in diameter, and excluding the base pins is 274 mm tall.
Reference: Data-sheet.



Pin Connections
1
2
3
4
5
tc
c,h
k
g1
c
h
a



Absolute Maximum Operating Conditions
The Thyratron
Vh
Ah
Va
6.3
15.0
25,000
Thanks to Frank Philipse for supplying the above PDF datasheet.
