Z14

Sensibly equivalent to:
1N5GT 1N5G DF33
See also:
Osram Valve Range Advert

Extras ▼



The Z14 is a variable μ RF pentode for dry battery operation used for domestic broadcast receivers at RF or as an IF amplifier. The filaments had to have the lowest possible consumption due to the cost of the dry batteries.

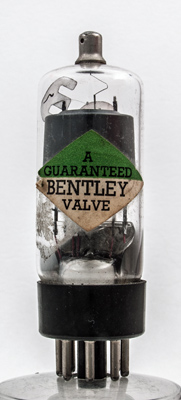

This exhibit carries the M-OV identification lozenge but was later sold by The Bentley Acoustic Corporation as per the paper label.

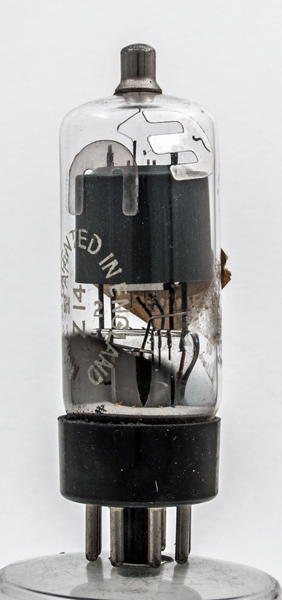

The screening makes a view of the electrodes difficult. Here the three wire grids can just be seen.

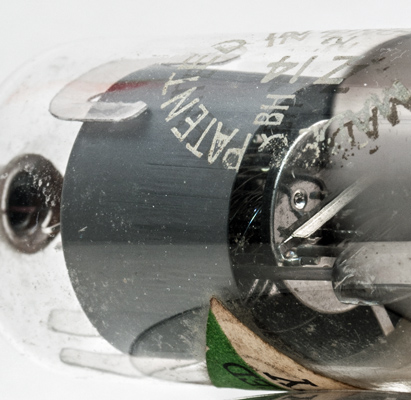

The rods rising from the outer edges of the pinch are the anode supports the visible cylinder is the shield as is the bright plate below the grids.

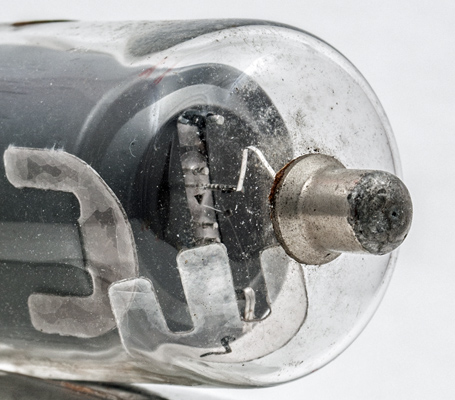

The control grid connects to the top cap. The fine wire running from the lower shield support to the centre of the valve is the filament tension spring and one of the filament connections. The oxide coated filament can be seen as a single strand entering the valve between the control grid supports.
The wide glass tube envelope is 29 mm diameter, and excluding the IO base pins, is 81 mm tall.
References: Data-sheet, 1040 & 1043. Type Z14 was first introduced in 1940. See also 1940 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
f+
a
g2
nc
nc
f-
nc
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
1.4
0.05
90
90
0
1.2
0.3
1.5M
0.75
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 04, 2022.
