CV1135

Sensibly equivalent to:
CV6 DET20 E1148 NR80 VR135

Extras ▼

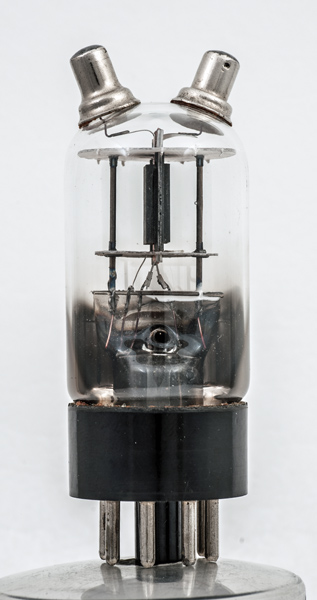

The CV1135 is a power triode based on the M-OV E1148 experimental valve that became the DET20. It is also known as the VR135 and the NR80.
The triode is mounted high up in the envelope to allow short and thus low inductance connections to the two top caps, one for anode and the other for the grid.

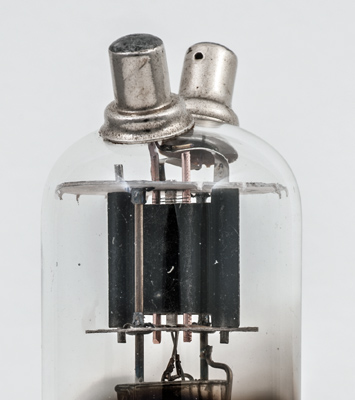

A closer look at the triode electrodes. The control grid is close wound on copper supports.
The wide glass tube envelope is 30 mm in diameter, and excluding the IO base pins is 73 mm tall.
Reference: Data-sheet.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
tc
nc
h
nc
nc
nc
nc
h
k
a
g1



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
mAa
Pdiss
Pout
freq
f.max
6.3
0.2
300
25
3.5W
4.25W
50MHz
300MHz
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 03, 2022.
