StR100/80



Extras ▼

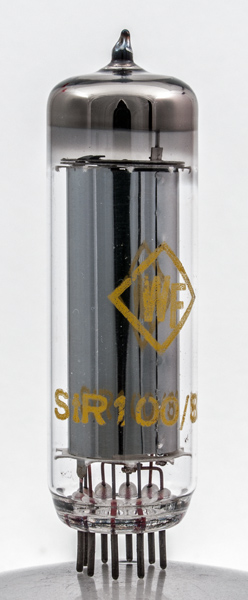

The STR100/80 is a voltage stabiliser made by WF Werk f Fernsehelektronik.

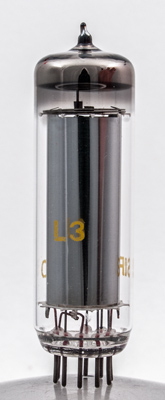

The reverse is plain except for the code L3.
The thin glass tube envelope is 21 mm in diameter, and excluding the B9A base pins is 70 mm tall.
Reference: Datasheet. Type StR100/80 was first introduced in 1965.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a
k
ic
a
ic
ic
k
ic
ic



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
101
45
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 26, 2016.
shape:thin.glass.tube construction:all.glass type:voltage.stabiliser base:b9a pins:9 pin:1.a pin:2.k pin:3.ic pin:4.a pin:5.ic pin:6.ic pin:7.k pin:8.ic pin:9.ic
