ECC86

Sensibly equivalent to:
6GM8
See also:
Pope ECC86 Box

Extras ▼

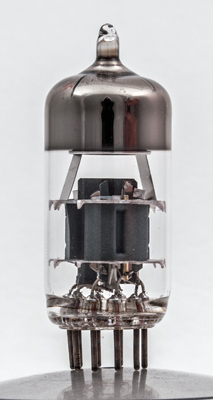

This exhibit is an ECC86 double triode. It is very special high frequency double triode. At a time when AF power transistors were replacing valves but no VHF transistors were available the ECC86 was designed to operate directly from vehicle battery supplies for car radio applications alongside transistors.

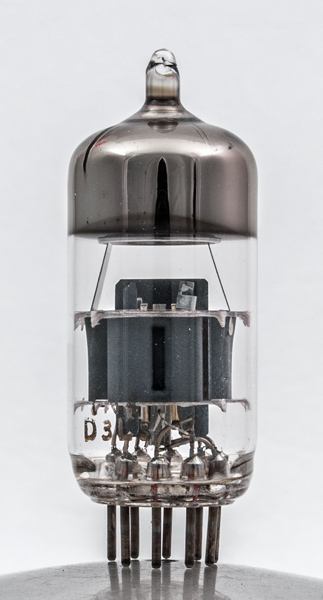

One half of the valve. The depression in the anode is so the working face can be close to the grid but with lower capacitance than if the whole anode was that close.

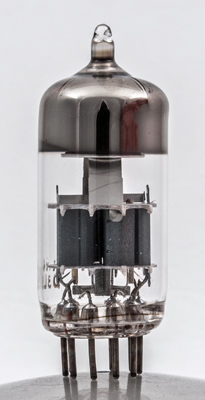

The two sections are separated by a screen.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 49 mm tall.
Reference: Data-sheet Type ECC86 was first introduced in 1959. See also 1959 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
g1(2)
k(2)
h
h
a(1)
g1(1)
k(1)
s



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
6.3
0.33
30
-1
20
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 11, 2016.
