6X5GT

Sensibly equivalent to:
6X5GT/G CV574 VT-126B
See also:
CV574 short entry

Extras ▼



The 6X5GT is a standard HT rectifier for low power AC mains driven equipment. The output of a centre tapped transformer would be applied to the anodes, the rating given is 325-0-325, the common cathode would be the output for the rectified voltage. A effective series resistance of 350 Ohms was required to limit surges and the reservoir capacitor had to be restricted to 16 µF. Nothing special and soon replaced by miniature valves of higher specification.
This exhibit is from Brimar and like all 6X5GT versions there is a common central cathode. However the anodes in this valve long side flanges and are mounted in an X formation one with the side flanges facing to the top and the other with the flanges pointing down. Thus unlike the 6X5GTs with small anodes stacked vertically this example manages extra radiating fin area. Our other Brimar 6X5GT has stacked anodes. The RCA implementation of the 6X5GT has long single sided anodes either side of the cathode.

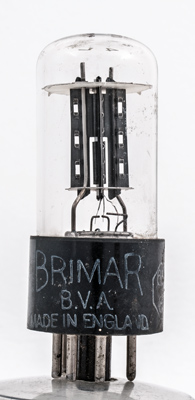

The Brimar name and Made in England.

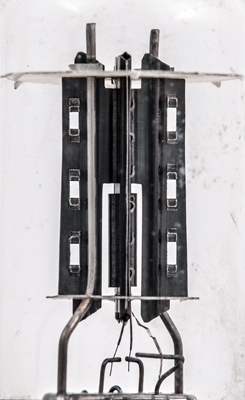

A closer view of the crossed anodes and the method of stitching the anodes together.
The wide glass tube envelope is 29 mm in diameter and excluding the IO base pins the valve is 69 mm tall.
References: Datasheet, 1040 & 1043. Type 6X5GT was first introduced in 1936.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a(2)
-
a(1)
-
h
k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
6.3
0.6
325
70
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 18, 2017.
shape:wide.glass.tube construction:pinch type:rectifier.fw age:1930.1940 base:io heater:6.3v pins:8 pin:1.m pin:2.h pin:3.a(2) pin:4.- pin:5.a(1) pin:6.- pin:7.h pin:8.k
