CV1198

Sensibly equivalent to:
AD/P4 NR94

Extras ▼



The CV1198 is an indirectly heated triode based on the AD/P4. The design purpose was for line scanning in TV circuits. The old service code was the Navy NR94.
CV1190 refers to a pair of CV1198s selected such that with 1.0kV on the anode, with a 100kΩ anode load and an anode current of 4.75 mA, the control grid voltages are within half a volt of each other.

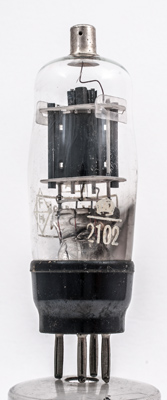

The crown and the number 2102.

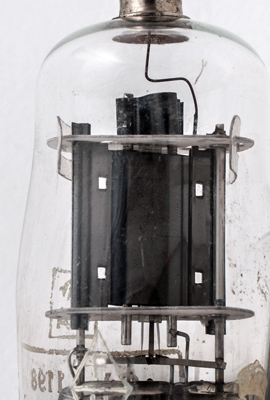

The flat anode face view. The cathode is flat and the grid has coolings fins above the top mica.
Reference: Datasheet.



Pin Connections
B5
1
2
3
4
5
tc
-
g1
h
h
k
a



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
4.0
1.1
700
-
-
2,800
7.0
20
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 26, 2017.
