CV5234

Sensibly equivalent to:
8063 CV3706 XR1-1600A ZT1011

Extras ▼

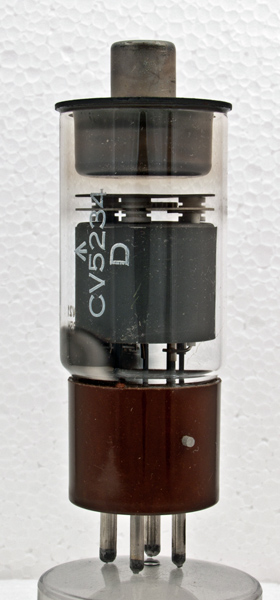

The CV5234 is a triode Thyratron designed for industrial control applications. The peak current is 20 Amps.
The UX4 base also has a locating pin for bayonet bases.

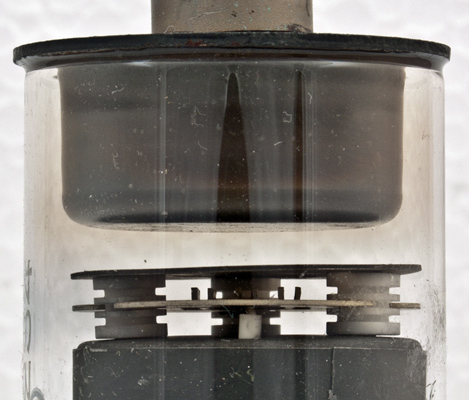

The ceramic insulator appears to shield the grid connection.
The anode is directly sealed into the glass tube and offers the best opportunity for forced air cooling if required.

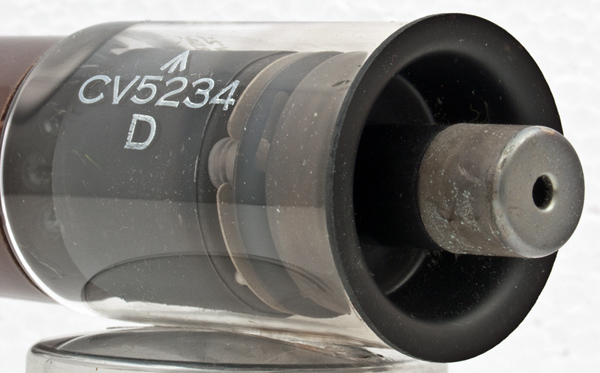

The anode dish with top cap connection.

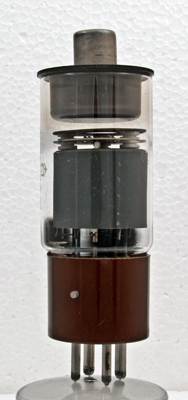

The wide glass tube envelope is 38 mm in diameter, and excluding the UX4 base pins is 103 mm tall.
Reference: Data-sheet. Type CV5234 was first introduced in 1961. See also 1961 adverts.



Pin Connections
UX4
1
2
3
4
tc
f
fct
g1
f
a



Absolute Maximum Operating Conditions
The Thyratron
Vh
Ah
Va
mAa
2.5
9.5
1,500
1,600
PDF scanned from an original document held by the museum
