U403


See also:
Mazda UU6 & U403 Advert

Extras ▼



The U403 is an indirectly heated half wave rectifier designed for universal mains equipment. That is either AC or DC mains. The 200 mA heater is designed for series heater chains.
Initially the U403 was introduced as a metallised valve and was still advertised as such in 1947. This exhibit is of later manufacture when the benefits of a longer life through better heat loss were recognised.

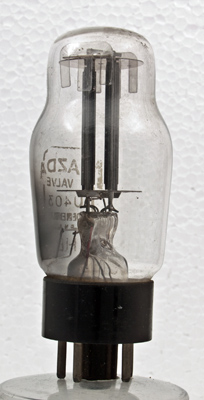

The two anodes are joined above the top mica.

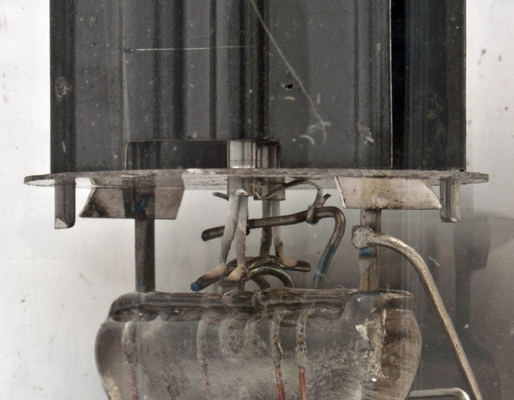

The pinch level components. Note the significant heater insulation.

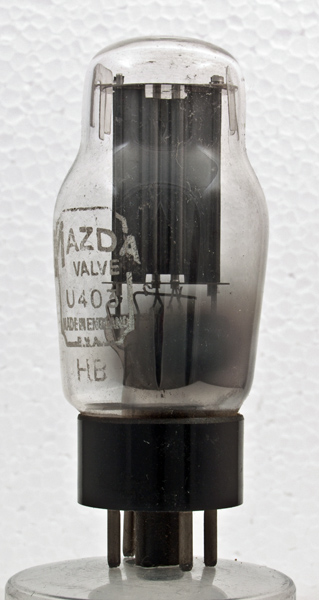

The classic envelope is 38 mm in diameter, and excluding the MO base pins is 82 mm tall.
References: Data-sheet, 1040 & 1043. Type U403 was first introduced in 1938. See also 1938 adverts.



Pin Connections
MO
1
2
3
4
5
6
7
8
h
nc
k
nc
a
m
nc
h



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
40
0.2
250
120
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 06, 2022.
