6X5

Sensibly equivalent to:
CV573

Extras ▼



The 6X5 is a full wave indirectly heated rectifier. The RCA data gives a high voltage specification but other makes quote 350-0-350 as the input voltage. RCA specify a small reservoir capacitor.
The 6X5 was made with a standard glass envelope (6X5G) and a glass tubular envelope (6X5GT) as well.

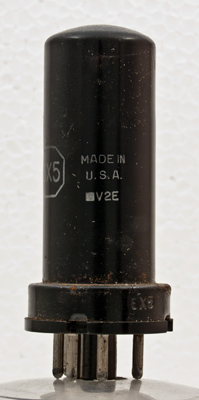

Made in the USA, code and 6X5 stamped on the base.

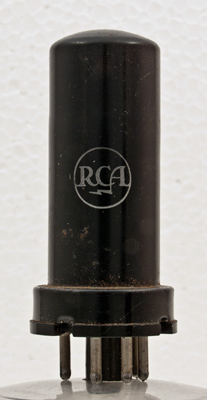

The RCA logo.
The thin metal tube envelope is 25 mm in diameter, and excluding the IO base pins is 68 mm tall.
References: Data-sheet, 1040 & 1043. Type 6X5 was first introduced in 1936. See also 1936 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a(2)
nc
a(1)
nc
h
k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
6.3
0.6
650
70
Thanks to Frank Philipse for supplying the above PDF datasheet.
