5693

Sensibly equivalent to:
CV3699
See also:
Metal Striptease

Extras ▼

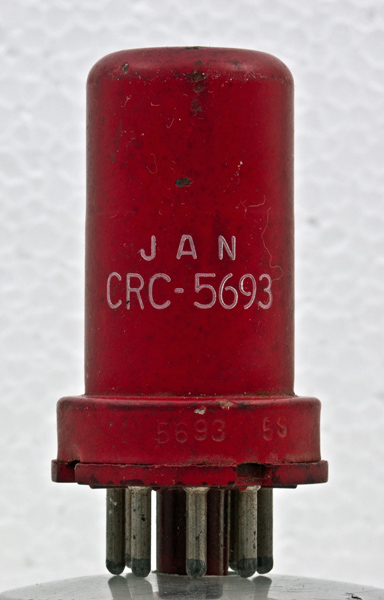

The 5693 is a long life version of the commercial 6SJ7. It is a sharp cut-off pentode designed for critical industrial applications.

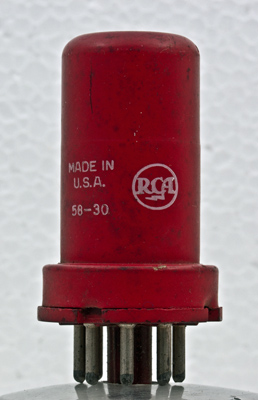

The reverse of the envelope carries the RCA logo and states the country of origin.
The thin metal tube envelope is 25 mm in diameter, and excluding the IO base pins is 51 mm tall.
Reference: Data-sheet. Type 5693 was first introduced in 1948. See also 1948 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
g3
g1
k
g2
h
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
100
-3
3
0.8
1M
1.65
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated September 07, 2013.
