EABC80

Sensibly equivalent to:
6AK8 6LD12 6T8 DH719
See also:
Mullard VHF FM Radio Series Advert, June 1954 - Mullard EABC80 Advert, September 1954

Extras ▼

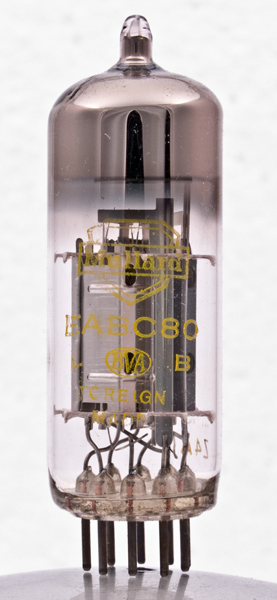

The EABC80 is a triple diode triode. This exhibit is of Foreign origin, our other example EABC80 is British made.
The triode and two diodes share a common cathode but one diode has a separate cathode.
The EABC80 was specifically designed (1954) for use in the detector stage of early FM and FM/AM radios. The triode section providing the first audio amplification, the single diode and one of the diode pair were used as an FM detector in a ratio detector circuit. See FM Broadcasting and Signal Detection. The other diode in the pair being used as the AM detector when that part of the circuit was required.
This design was also produced in versions for universal sets (no mains transformer). See UABC80 and PABC80.

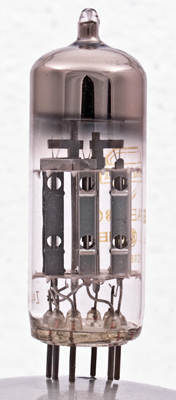

The three sets of electrodes seen end on. The plate seen ascending on the right is one of a pair that carry the heater voltage to the top of the electrodes. The three sections have their heaters in series and all connected from the top.
The series connected heaters are at the top. The triode is on the left, the twin diodes in the centre and the single diode on the right.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 58 mm tall.
References: Data-sheet, 3002 & 1040. Type EABC80 was first introduced in 1952. See also 1952 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(d3)
a(d2)
k(d2),s
h
h
a(d1)
k
g1
a



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.45
250
-3
1.0
50,000
1.4
Thanks to Frank Philipse for supplying the above PDF datasheet.
