NR85

Sensibly equivalent to:
6F6G ARP17 CV1186 KT63
See also:
CV1186 short entry

Extras ▼

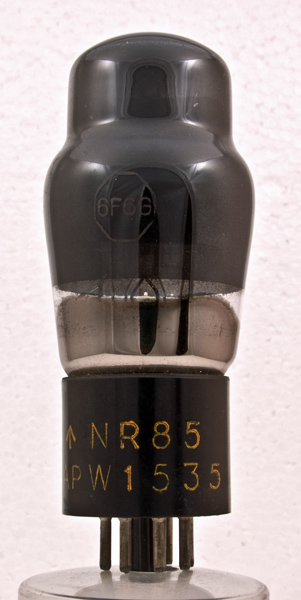

The NR85 can be seen to be a straight rebranding of the 6F6G. In military jargon it is Naval Receiving valve number 85.
It is an output pentode designed for audio amplification in radio receivers. The operating values given are for single ended use with an anode load of 7,000 Ohms.
If a pair are used as an audio amplifier in push pull class A, 10.5 Watts are possible with 3% distortion.
The equivalent type KT63 is a beam tetrode.

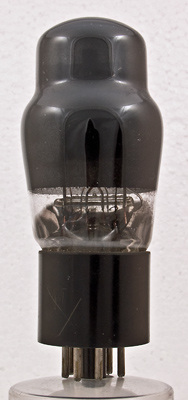

The electrodes are obscured but the pinch can be seen.
The classic envelope is 42 mm in diameter and excluding the IO base pins the length is 95 mm.
References: Data-sheet, 1040 & 1043.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
g2
g1
nc
h
k



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
6.3
0.7
285
285
-20
38
7
78k
2.55
4.5W
9%
Thanks to Frank Philipse for supplying the above PDF datasheet.
