The 12AW6 dates from 1947 and is a voltage amplifier pentode.

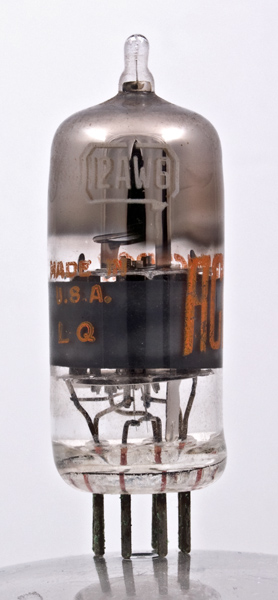

The RCA identification. Few constructional details are visible.
The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 46 mm tall. Type 12AW6 was first introduced in 1947.

Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a
g2
g3

Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
12.6
0.15
300
150
-8
7.0
2.0
0.3M
5.0

Thanks to Frank Philipse for supplying the above PDF datasheet
