108C1

Sensibly equivalent to:
0B2 CV1833 G108/1K QS1208
See also:
Voltage Reference and Stabiliser Tubes Advert

Extras ▼

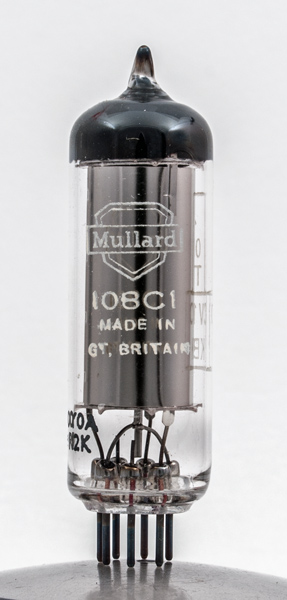

The 108C1 is the Mullard implementation of the cold cathode voltage stabiliser that originated as the 0B2.
The B7G voltage stabilisers were the last to be developed before semiconductor zener diodes took over as voltage references.
The regulation of this tube was 3.5 Volts for currents of between 5 and 30 mA. So the voltage across this tube in service would have been held at between 106 and 110 volts. The striking voltage was 133 volts.
The envelope also carries the designations 0B2 and CV1833.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 59 mm tall.
References: Data-sheet, Data & 1040.



Pin Connections
B7G
1
2
3
4
5
6
7
a
k
ic
k
a
ic
k



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
108
30
Thanks to Frank Philipse for supplying the above PDF datasheet.
