CV2179

Sensibly equivalent^¶ to:

A2134 CV4062 E2134

Extras ▼

GEC Donation by Crowthorne Tubes Other CV2179 exhibits

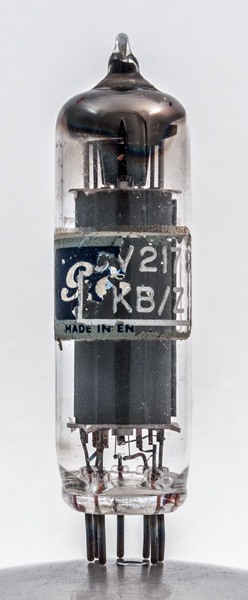

CV2179 is the UK Government procurement designation for the commercial A2134 pentode. This valve carries the M-OV professional trade name of GEC and the A2134 designation.

The literature shows that it was designed as an audio power valve. In class AB1 a pair of valves in push pull will deliver 13.3 Watts. The input needs 30 Volts peak to peak and the anode load has to 7500 Ohms.

In class A triode application the valve will generate 2.6W at 1.4% distortion.

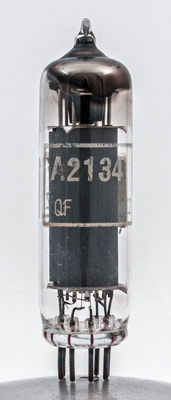

The reverse carries the commercial A2134 code.

The thin glass tube envelope is 18 mm in diameter and excluding the B7G base pins the length is 63 mm.

References: Data-sheet & ¹⁰⁴⁰. Type CV2179 was first introduced in 1955. See also 1955 adverts.

Pin Connections

B7G	1	2	3	4	5	6	7
	g1	k	h	h	a	k	g2

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	mAa	mAs	Pout	D
	6.3	0.635	250	165	40	12	13.3W	4.5%

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated March 05, 2015.
