6BZ6

Sensibly equivalent to:
6JH6

Extras ▼



The 6BZ6 is described as a semi remote cut off pentode (Variable μ) for use in television receivers within the IF strip. Thus it was designed to provide wideband amplification at 30 - 40 MHz.

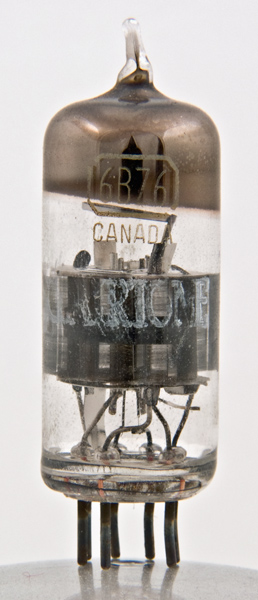

The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 48 mm tall.
Reference: Data-sheet. Type 6BZ6 was first introduced in 1955. See also 1955 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a
g2
g3



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
125
125
-4
14.0
3.6
0.26M
8.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 28, 2013.
