6C6

Sensibly equivalent to:
CV585

Extras ▼



The data sheet says the 6C6 design is very close to the 6J7G with the exception of the inter electrode capacitances. The 6C6 is a general purpose amplifier valve but the close similarities with the 6J7 indicate a good linear characteristic and good suitability for early stage audio amplification.

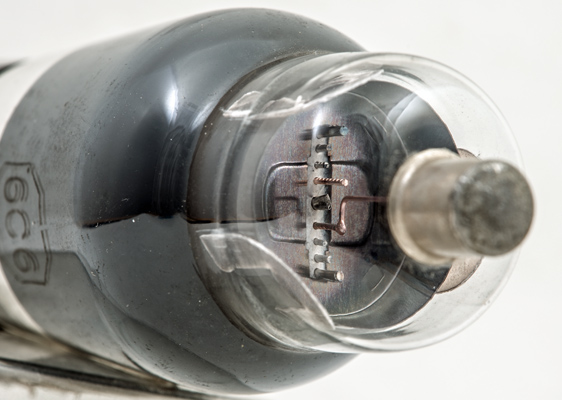

The top cap connects to the copper rods of the control grid. The cathode is a round tube and the fourth rod out from the cathode is a support for the screens.

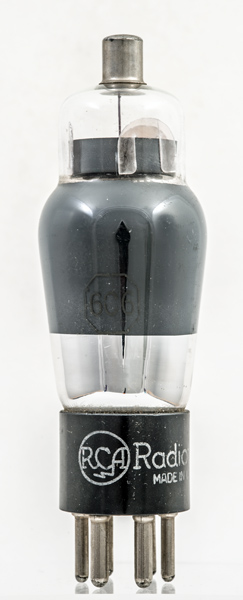

The classic envelope is 38 mm in diameter, and excluding the UX6 base pins is 105 mm tall.
References: Data-sheet, 1040 & 1043. Type 6C6 was first introduced in 1936. See also 1936 adverts.



Pin Connections
UX6
1
2
3
4
5
6
tc
h
a
g2
nc
k
h
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
μ
6.3
0.3
250
250
-0
2.0
0.5
1.0M
1.225
20
Thanks to Frank Philipse for supplying the above PDF datasheet.
