6AU6WA

Sensibly equivalent^¶ to:

6136 CV4023

Extras ▼

General Electric Valve Donation by Peter Bates (GM4BYF)

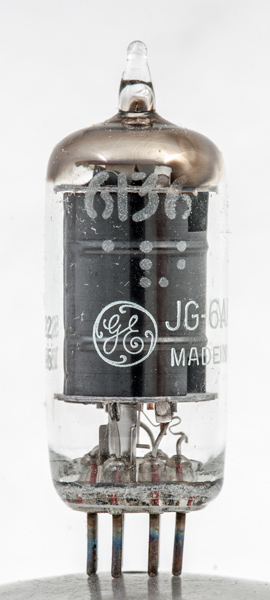

The 6AU6WA/6136 is a special quality RF pentode for use up to 50 MHz.

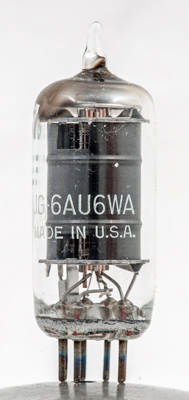

The two inner grids are wound on copper supports. The gaps in the anode allow the wire grids to be seen.

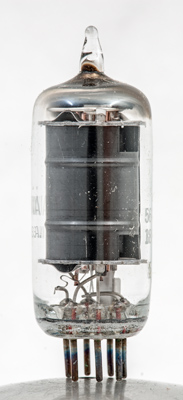

Below the lower mica is a screen covering the anode pin.

The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 47 mm tall.

References: Data-sheet, ¹⁰⁴⁰ & ¹⁰⁴³. Type 6AU6WA was first introduced in 1952. See also 1952 adverts.

Pin Connections

B7G	1	2	3	4	5	6	7
	g1	g3,s	h	h	a	g2	k

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm
	6.3	0.3	250	150	-1	10.6	4.3	1.0M	5.2

Thanks to Frank Philipse for supplying the above PDF datasheet.
