PCL83

Sensibly equivalent to:
CV5144 LN309
See also:
Valves and their Habits

Extras ▼

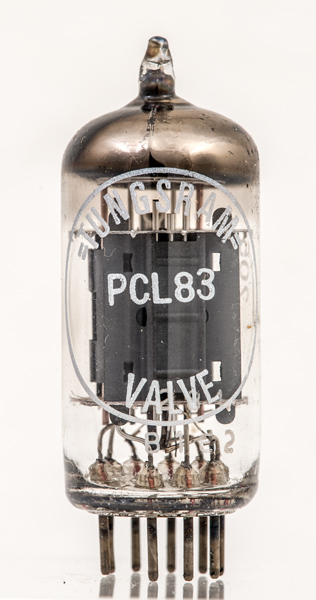

The PCL83 is a television valve. Uses include frame generator and output as well as audio pre-amplifier and output amplifier.

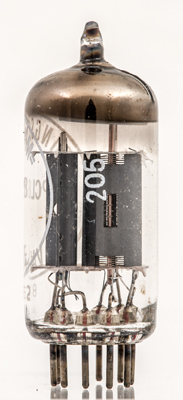

The Wire grids of the pentode can be seen. She suppressor grid has a very open pitch.

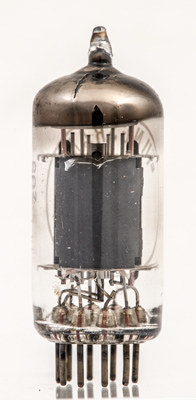

The pentode: looking face on to the grid axis.

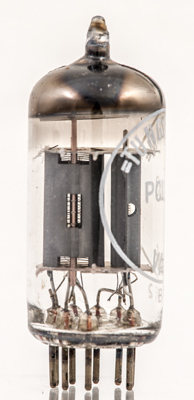

Here the triode grid winding is visible as are two of the pentode grids.
The thin glass tube envelope is 20 mm in diameter and excluding the B9A base pins, is 49 mm tall.
References: Data-sheet & 1040. Type PCL83 was first introduced in 1954. See also 1954 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(t)
g1(t)
k(t)
h
h
a
k,g3
g2
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pdiss
Pout
12.6
0.3
170
170
-9.5
30
5
53k
5.5
5.4W
2.2W



Absolute Maximum Operating Conditions
Triode
Va
Vg
mAa
ra
gm
250
-8.5
10.5
7700
2.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
