D77

Sensibly equivalent to:
6AL5 6D2 CV140 D152 DD6 EAA91 EB91
See also:
Valves and their Habits

Extras ▼

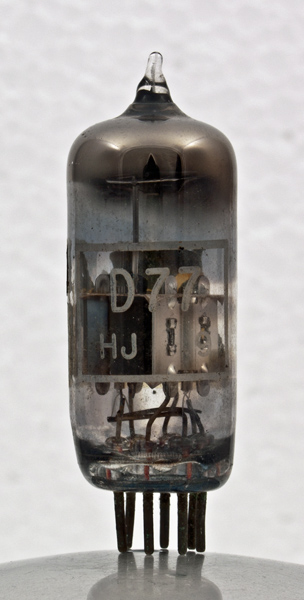

The D77 is the M-OV equivalent of the Mullard EB91, and consists of two separate signal diodes in the envelope. The QD77 is a special quality version of this valve.
The diodes were designed for vision and sound detection in television receivers. Additionally they are recommended for limiting and DC restoration.

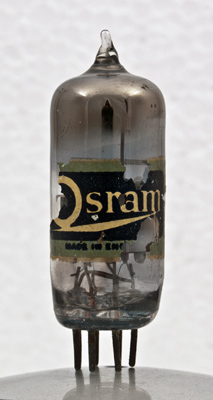

Here the valve is branded as Osram the consumer brand of M-OV.

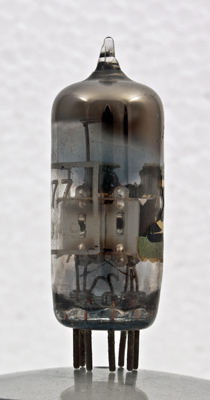

One of the diode sections. The active part of the valve is seen as a small vertical line on the bright anode.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 46 mm tall.
Reference: Data-sheet & 1040. Type D77 was first introduced in 1949. See also 1949 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
k(1)
a(2)
h
h
k(2)
s
a(1)



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.3
150
9
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December10, 2013.
