EF93

Sensibly equivalent to:
6BA6 6K4P CV454 PM04 W727

Extras ▼

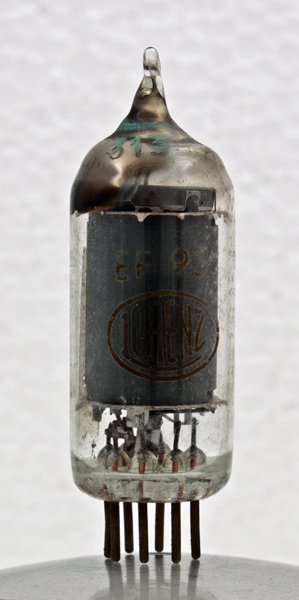

The EF93 is a variable μ screened pentode on a B7G base. It is specified for service as an RF or IF amplifier.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 49 mm tall.
References: Data-sheet, 3002 & 1040. Type EF93 was first introduced in 1951. See also 1951 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
g3
h
h
a
g2
k



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
100
-1
11
4.2
1.5M
4.4
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December10, 2013.
