PCF86

Sensibly equivalent to:
8HG8
See also:
Valves and their Habits

Extras ▼

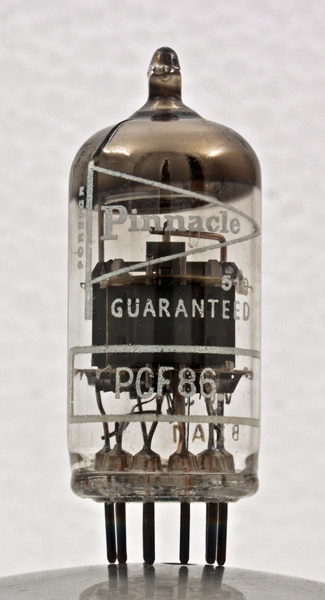

The PCF86 is a miniature VHF TV frequency changer and it replaced the PCF80 in that role.. It has been designed for the triode oscillator to supply 3.2 Volts peak to peak to the pentode mixer section.

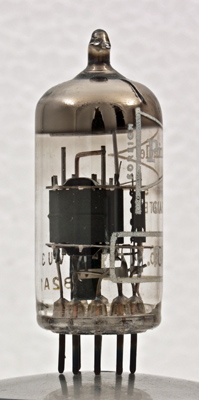

The pentode is of frame-grid construction.
The copper strut in the centre is the screen grid connection.

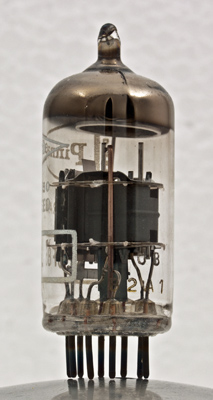

The Triode section is on the right. The fine heater wire is coiled prior to insulation being applied.
This exhibit was complete with the original box.
The box gives price and tax information and is from the era when the UK regarded anything not made at home as Foreign.
The valve packaging within the box. The paper doubles up as the guarantee.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 48 mm tall.
References: Data-sheet, 3002 & 1040. Type PCF86 was first introduced in 1960. See also 1960 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
k,g3,s
g1
k,g3,s
h
h
g1(t)
a(t)
a
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
8.0
0.3
190
140
-1.5
8.5
2.7
0.35M
4.5



Absolute Maximum Operating Conditions
Triode
Va
mAa
120
6.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated September 13, 2013.
