6K8

Sensibly equivalent to:
CV1945
See also:
Metal Striptease - The 'Magic Three' Valves - Two New Converter Valves

Extras ▼

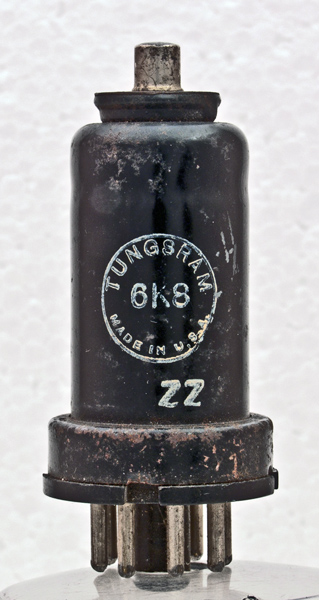

The 6K8 triode hexode valve was purpose designed as a radio frequency changer. Tungsram made valves in the UK and Hungary. This exhibit is marked Made in USA and one can speculate that this was probably made by RCA for Tungsram.
The local oscillator would produce 7.5 Volts peak to peak signal from the triode section.
The input signal would be coupled to the frequency changer via the top cap connection to grid 3.
As a metal enveloped valve the top cap connection is interesting. The connector is standard but is set in an insulating disk that is then sealed into a shaped end of the envelope. This appears quite difficult to manufacture.
See 6K8 for the RCA version.
The thin metal tube envelope is 25 mm in diameter and excluding the IO base pins, is 63 mm tall.
References: Data-sheet & 1040. Type 6K8 was first introduced in 1938. See also 1938 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
h
a
g2,g4
g1(t),g1
a(t)
h
k
g3



Absolute Maximum Operating Conditions
Hexode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
100
-3
2.5
6
0.6M
0.36



Absolute Maximum Operating Conditions
Triode
Va
mAa
100
3.8
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 22, 2016.
