68506

Sensibly equivalent to:
18049 2000
See also:
Tungar Rectifiers - Ediswan Tungar Rectifier Box

Extras ▼



The 68506 is a Tungar half wave rectifier designed for low voltage battery chargers. Tungar comes from the Tungsten filament and the Argon gas filling. The anode is graphite. The gas makes possible a low voltage drop across the rectifier, typically 10 Volts, but also limites the anode voltage.
See also The general Electric Tungar booklet.

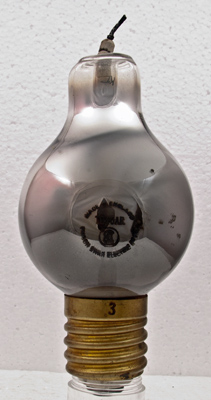

The Tungar name and the makers identification - Edison Swan.

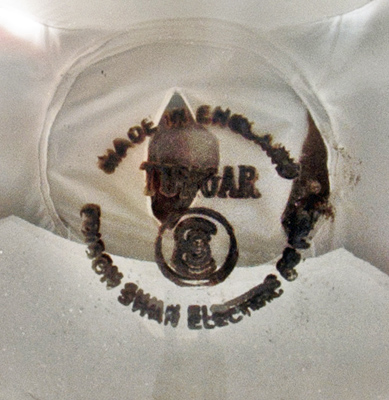

The logo and etched lettering on the silvered glass.

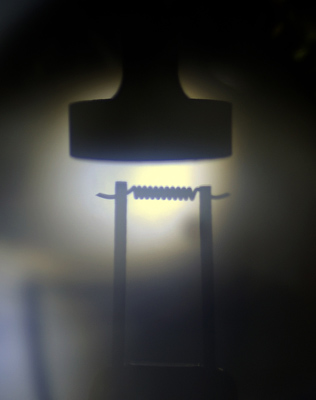

The construction of this exhibit. Some Tungar rectifiers had a clear envelope but with this gettered design the internal structure is obscured. With a very strong backlight and a long exposure this image was formed.

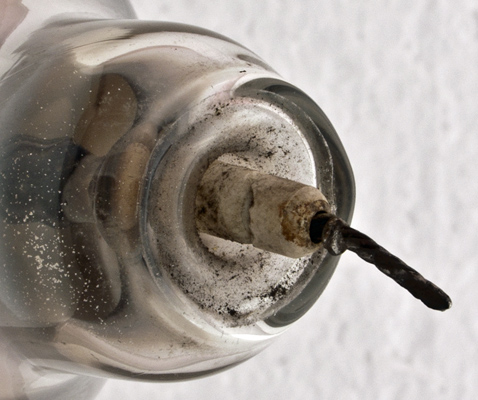

The anode connection and ceramic insulators.

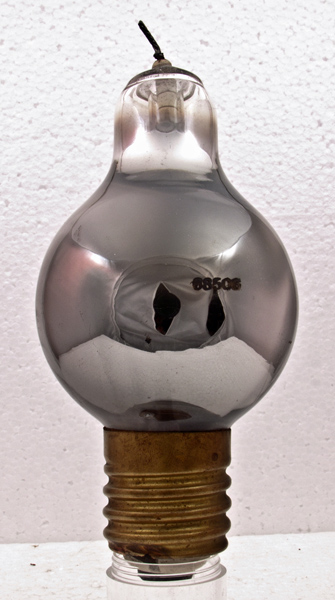

The balloon envelope is 81 mm in diameter, and including the GES base is 157 mm tall.
References: Datasheet. Type 68506 was first introduced in 1948.



Pin Connections
GES
1
2
tc
f
f
a



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
2.3
18.0
75
6,000
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 06, 2014.
shape:balloon construction:pinch type:rectifier.hw age:1940.1950 base:ges pin:1.f pin:2.f pin:tc.a
