CV2179 is the UK Government procurement designation for the commercial A2134 pentode. The literature shows that it is designated as an audio power valve. In class AB1 a pair of valves in push pull will deliver 13.3 Watts. The input needs 30 Volts peak to peak and the anode load has to 7500 Ohms.

In class A triode application the valve will generate 2.6W at 1.4% distortion.

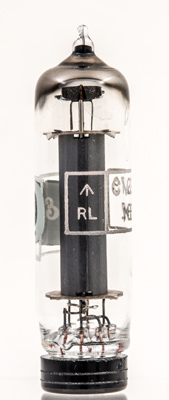

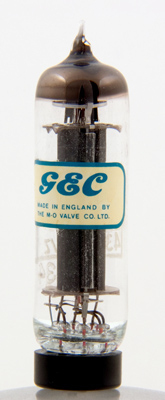

The GEC logo showing that it is a brand of the M-OV Valve Company is on the reverse.

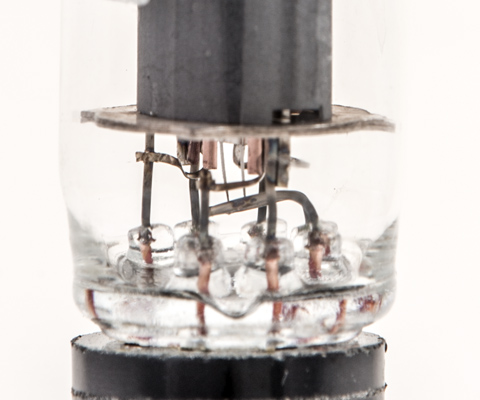

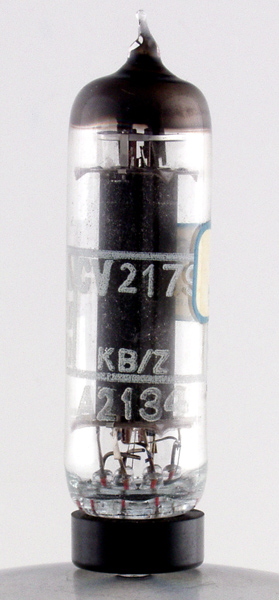

The thin glass tube envelope is 18 mm in diameter, and excluding the base pins is 60 mm tall.


Pin Connections

B7G	1	2	3	4	5	6	7
	g1	k	h	h	a	g3	g2


Absolute Maximum Operating Conditions

Pentode	Vh	Ah	Va	Vs	mAa	mAs	Pout	D
	6.3	0.635	250	165	40	12	13.3W	4.5%
