U329

Sensibly equivalent^¶ to:

PY81 U251

See also:

Valves and their Habits - Valves at the 1953 Show

Extras ▼

Ediswan Brian Middleton Valve Gift

The U329 is a television efficiency diode. Considerable energy is fed to the line deflection coils and this has to dissipate during flyback. The efficiency diode channels this energy back to the supply rail smoothing capacitors for use on the next line scan.

The rectifier is specified as having a peak inverse voltage rating of 7,500 volts, and a peak current rating of 450 mA. No voltage drop is quoted so the dissipation can not be given.

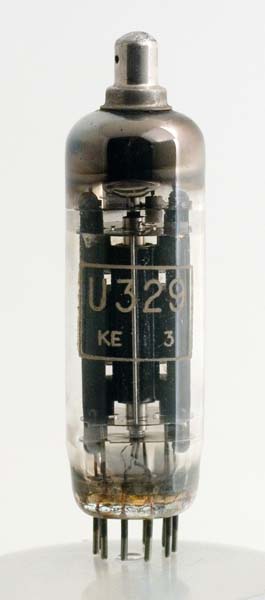

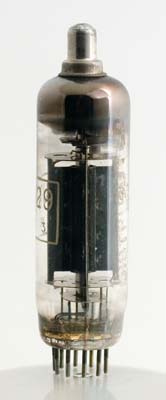

From the first picture the ceramic insulators and substantial cathode tube diameter can be seen. The second picture shows the valve from the side.

The thin glass tube envelope is 19 mm in diameter and excluding the B9A base pins the length is 71 mm.

References: Data-sheet & ¹⁰⁴⁰

Pin Connections

B9A	1	2	3	4	5	6	7	8	9	tc
	ic	ic	ic	h	h	ic	ic	ic	a	k

Absolute Maximum Operating Conditions^¶

Rectifier	Vh	Ah	Vg	mAa
	17	0.3	-1	150

Thanks to Frank Philipse for supplying the above PDF datasheet.
