DL96

Sensibly equivalent to:
1P1 3C4 N25

Extras ▼

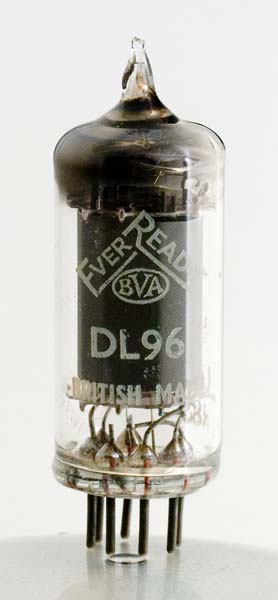

The DL96 is a battery output pentode for use in portable radio receivers. Ever Ready will have contracted one of the major manufacturers to produce the valve. By the 1950s Ever Ready were long out of valve manufacture. The Every Ready name was the UK market leader for radio batteries, both HT and LT.
The thin glass tube envelope is 17 mm in diameter and, excluding the B7G base pins, is 48 mm tall.
References: Data-sheet, 3002 & 1040. Type DL96 was first introduced in 1953. See also 1953 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
f(-)
a
g2
nc
f(tap)
g1
f(+)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
1.4
0.05
85
85
-5.2
5.0
0.9
150000
0.4
Thanks to Frank Philipse for supplying the above PDF datasheet.
