Sensibly equivalent to:- CV896

See also:
The 'Magic Three' Valves

This exhibit was last updated on 26 February 2013
Become a friend or
with PayPal.

The 7K7 is a double diode triode typical of the late 1940s in the UK. The diodes would be employed as signal detector and ACG rectifier whilst the triode would be the first audio voltage amplifier. Unlike earlier designs such as the 6Q7 the control grid is not taken to the top cap. The shorter internal pathways making it easier to avoid instability.

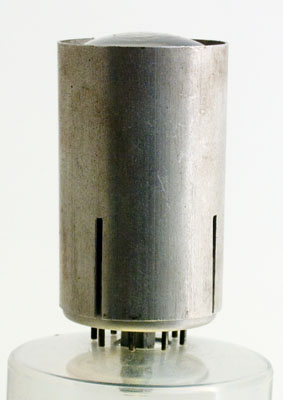

The valve came complete with purpose designed metal screening can.

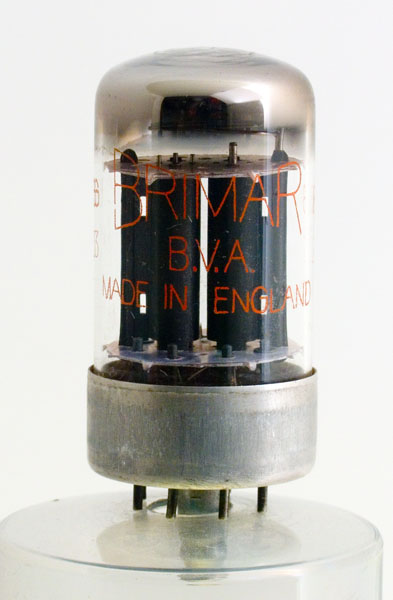

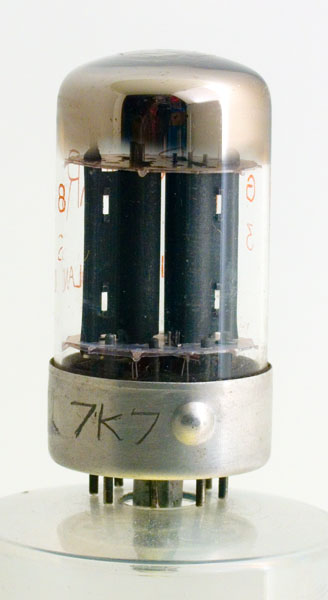

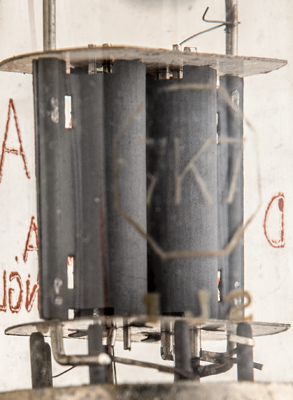

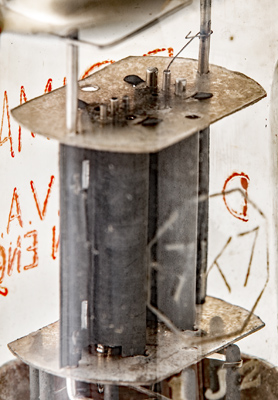

Seen from both sides it can be seen that the valve has two identical anode cavities. In one the grid support wires form part of the control grid of the triode. In the other cavity, one notched support rod is one of the anodes with the anode proper as the second diode anode. The second notched support rod is left unconnected.
The wide glass tube envelope is 28 mm in diameter and, excluding the B8B base pins, is 55 mm tall.
References: Datasheet & 1040. Type 7K7 was first introduced in 1938.

Pin Connections
B8B
1
2
3
4
5
6
7
8
h
k
a
g1
a(d2)
a(d1)
k(d),s
h

Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
250
-2.0
2.3
44000
1.6

Thanks to Frank Philipse for supplying the above PDF datasheet
