The T-41 or T41 from Ekco is a high μ detector triode. The Mazda T41 is a thyratron.

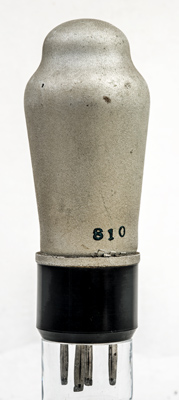

The plain reverse carries a makers code of 810.The classic envelope is 42 mm in diameter and, excluding the B5 base pins, is 105 mm tall.References: Data & 1043. Type T-41 was first introduced in 1937. See also 1937 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 |  a | g1 | h | h | k,g3 |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vg | mAa | ra | gm |
| 4.0V | 0.65 | 200 | -1.5 | 1.35 | 35,000 | 3.6 |
|
