The 6BA6 is a variable μ pentode for use at HF. Most probably as RF amplifiers in radio receivers.

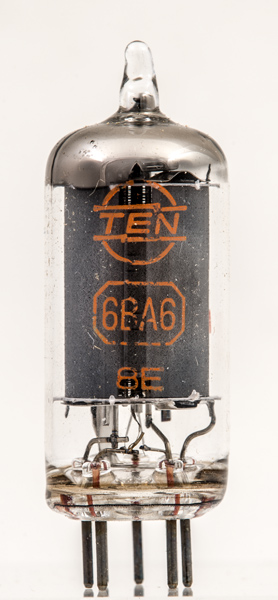

This valve arrived in a Ten box - a brand of the Japanese Kobe Kogyo Corporation.

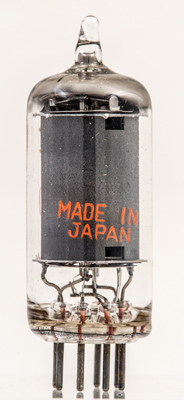

The reverse carries the country of origin.

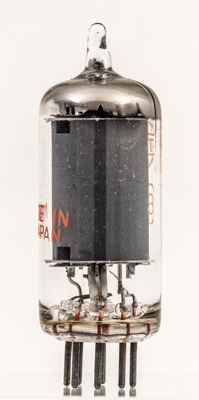

The outer screen is solid and below the bottom mica is the screened anode lead.

The thin glass tube envelope is 18 mm in diameter and excluding the B7G base pins, is 46 mm long.

References: Data-sheet & ¹⁰⁴⁰. Type 6BA6 was first introduced in 1950. See also 1950 adverts.

Pin Connections

Absolute Maximum Operating Conditions^¶

Thanks to Frank Philipse for supplying the above PDF datasheet.
