The E180CC is a special quality double triode designed for use in computer circuits. The E180CC will maintain its emission characteristics after long periods where the valve is biased to cut-off. This characteristic equates to use in a bi-stable or flip-flop circuit. The E180CC is not designed for audio use.
The heater is centre tapped for use at 6.3 or 12.6 Volts but in a parallel connection.

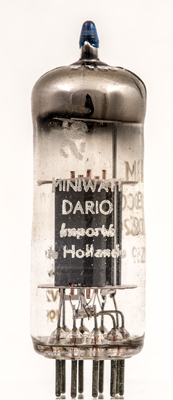

Dario became a Philips company in 1931.
The twin triode sections.

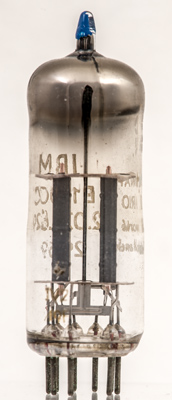

Face view of one anode with the copper supports for the control grid visible above and below the anode.

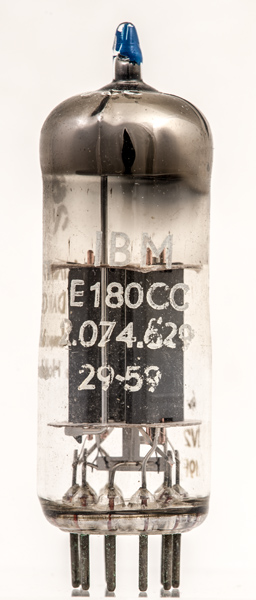

The thin glass tube envelope is 20 mm in diameter, and excluding the B9A base pins is 59 mm tall.
References: Data-sheet. Type E180CC was first introduced in 1954. See also1954 adverts.
